LPTC100-4310M, 4.3/10.0 Male, 100 Watts, 0.380-2.7 GHz
MECA’s Low PIM (-161dBc Typ) 100 Watts Terminations for DAS and Low PIM applications, with rugged construction and excellent performance across all wireless bands from 0.380 – 2.700 GHz make them ideal for in-building or tower top systems. Handling full rated power to +85C without power derating with a IP rated 67&68 which makes a perfect choice for various harsh environmental conditions. Made is USA - 36 month warranty!
When selecting a termination for a given connector style, one must determine the amount of power that needs to be absorbed and the acceptable level of reflection (VSWR) that can be tolerated over the given frequency range. MECA offers a wide selection of terminations from stock ready for your just-in-time shipments. With immediate access to our Application Engineers, you can choose the best product solutions for your specific needs.
For large quantities or special orders, submit a quote request by viewing this product on www.e-MECA.com.

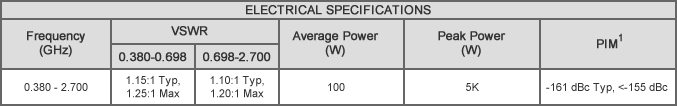

1. Passive Intermodulation Distortion:
-161 dBc Typical, with 2 X 20 watt tones verified at 1900 MHz (<-155 dBc) @25ºC.
2. 50 ohms nominal impedance is standard
3. Operating temperature from -55°C to +85°C.
