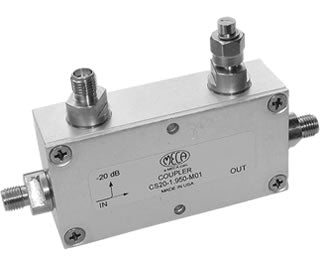

CS20-1.950-M01, 100 Watts, 0.900-3.000 GHz

$275.28
SKU CS20-1.950-M01
STOCK: 3

Description:
MECA’s CS20-1.950-M01 directional coupler is high power capable with extremely low insertion loss, a frequency range of 0.900-3.000 GHz, and is ideal for your systems applications where precise monitoring, external leveling, signal mixing or swept transmission and reflection measurements are desired. Coupled ports are DC isolated and will only pass RF. Weather resistant models (IP61) also available.

Dowload Spec Sheet

Quote Request:
For large quantities or special orders, submit a quote request by viewing this product on www.e-MECA.com.

CS10-1.500V

Notes:
1. Excluding theoretical insertion loss due to coupling (see table).
2. All units have a peak power rating of 10 kW.
3. 50 ohm nominal impedance standard.
4. Operating temperature is from -55°C to +85°C.
5. Mounting holes 0.156” diameter thru in 2 places.
