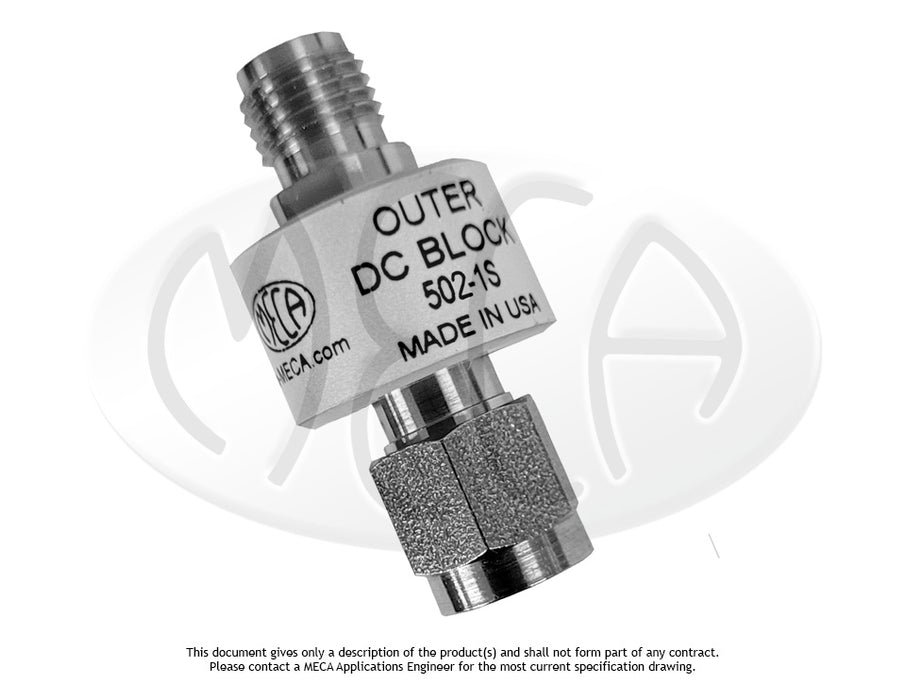

502-1S, 100 Watts, SMA, 0.010-18.0 GHz
Description:
DC Blocks are primarily used in applications to inject/remove DC currents or voltages in RF circuits without affecting the RF signal through the main transmission path. DC Blocks RoHS compliant, INNER, OUTER & INNER/OUTER DC Blocks cover wireless band applications from 0.010 – 18.0 GHz. Available in N, BNC, TNC, SMA & 7/16 DIN configurations with RF power ratings to 500 watts (2.5 kW peak) and breakdown voltages to 2.5 kV making them ideal for eliminating unwanted DC voltages or surges to tower top amplifiers or sensitive lab equipment.
Quote Request:
For large quantities or special orders, submit a quote request by viewing this product on www.e-MECA.com.
Notes:
1. 50 Ohms nominal impedance is standard
2. Operating temperature from -55°C to +85°C
