606-dB-11, 10 Watts, DC-2.5 GHz

$184.25
SKU 606-03-11
STOCK: 1
dB

Description:
MECA’s 606-dB-11 7/16 DIN (Male/Female) fixed attenuator features a frequency range of DC-2.5 GHz, an average power rating of 10 watts and is available from STOCK in 3, 6, 10, 20 & 30 dB values. ROHS Compliant. To order, please specify an attenuation value in place of dB. EXAMPLE: 606-10-11 for 10 dB.

Dowload Spec Sheet

Quote Request:
For large quantities or special orders, submit a quote request by viewing this product on www.e-MECA.com.

606-dB-11

606-dB-11

Specifying Tip:
For best results when selecting an RF attenuator for a given connector style, make sure to consider the amount of power being absorbed and the acceptable level of reflection (VSWR) that can be tolerated over the operating frequency range.

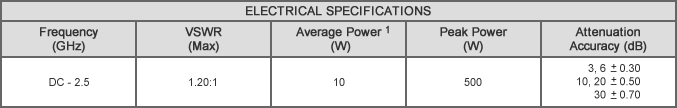

Notes:
1. Average power at 25°C derated linearly to 5 Watt at +70°C
2. Impedance (Nominal): 50 Ohms.
