802-2-5.000, SMA-Female, 2.0-8.0 GHz

Sold out
SKU 802-2-5.000
The product is out of stock

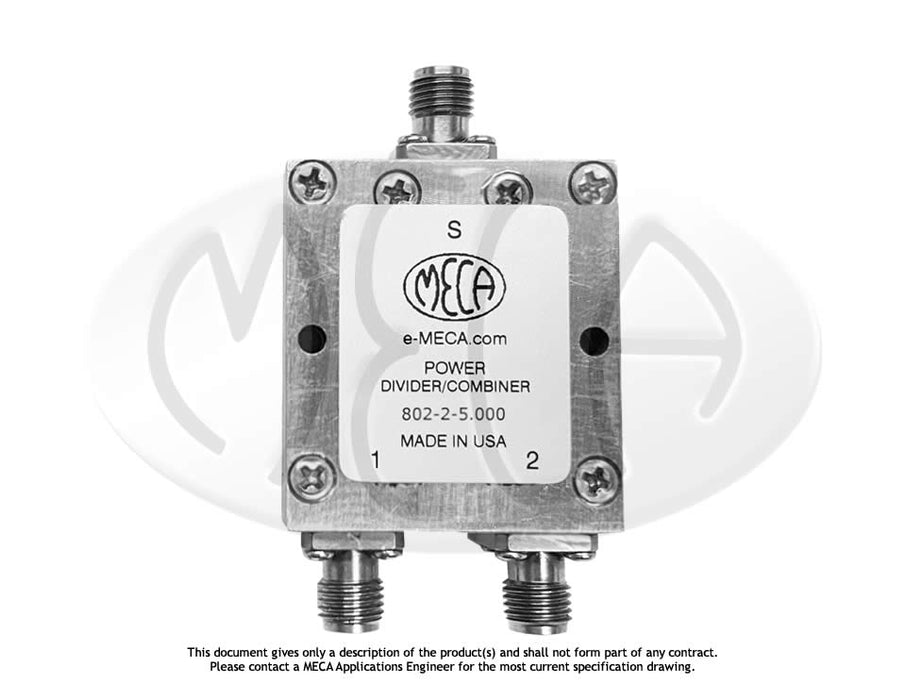

MECA's 2-way, 802-2-5.000-M01, SMA-Female power divider/combiner with an average power rating of 30 watts and frequency of 2.0-8.0 GHz.

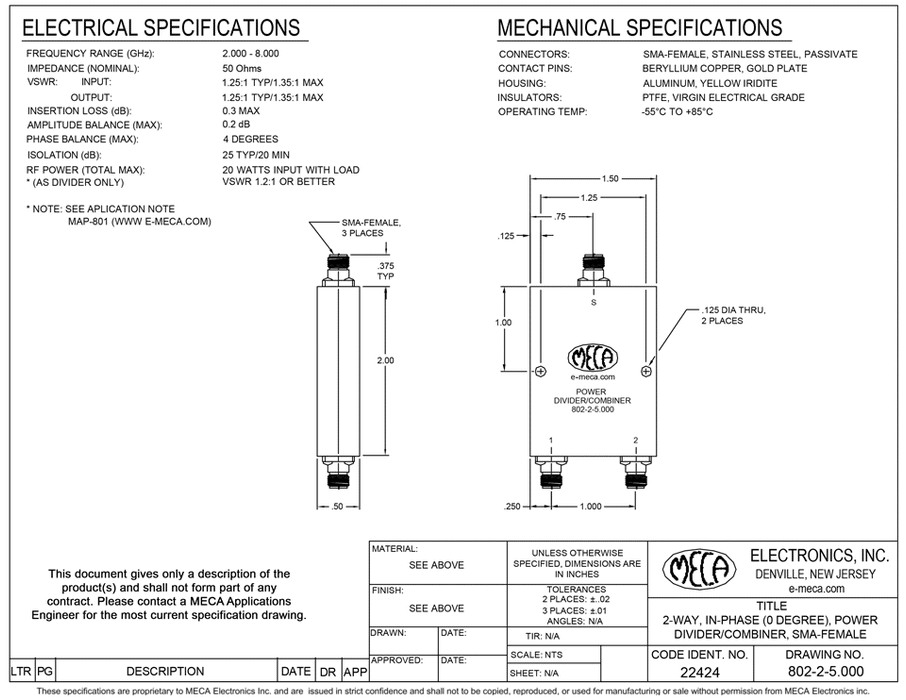

Dowload Spec Sheet

Quote Request:
For large quantities or special orders, submit a quote request by viewing this product on

1. Insertion loss above 3.01 dB theoretical 2-way power divider split.
2. All output/power combiner ports are in-phase (0° difference).
3. 50 ohm nominal impedance standard.
4. Operating temperature from -55°C to +85°C.
5. See application note MAP-801
